Darton pioneered modular sleeve designs and specialty ductile iron material beginning with their manufacture of top fuel sleeves in 1978. Darton sleeves excel in the harsh environment of all-out racing. Their centrifugally cast nodular composition represents the highest quality of any cast material. The unique matrix of Darton's centrifugally cast nodular iron sleeves provides unexcelled surface toughness. Darton's unique casting process provides a bore finish which, while very tough, promotes quick and total piston ring seal for the most complete combustion possible from each cylinder.
Darton now has engineered a superior solution to open-deck sleeve weakness by using a unique design which creates a solid deck of sleeve flanges held in tension, reinforcing the upper deck area and provides for in-field replacement with what they call “Modular Integrated Deck” (MID).
The Darton MID kits feature
Improved block integral strength
Improved cooling
• "Wet sleeve" replace-ability
• Increased horsepower output potential
• Superior oil and compression control
• Street or strip application
• Kits can be installed by your local machine shop
• Full installation manual with every kit sale
• Superior cylinder sealing and ring wear
• Ductile iron w/130,000 psi tensile strength
Darton sleeve kits also come in a standard “flanged” design for blocks with a closed deck.

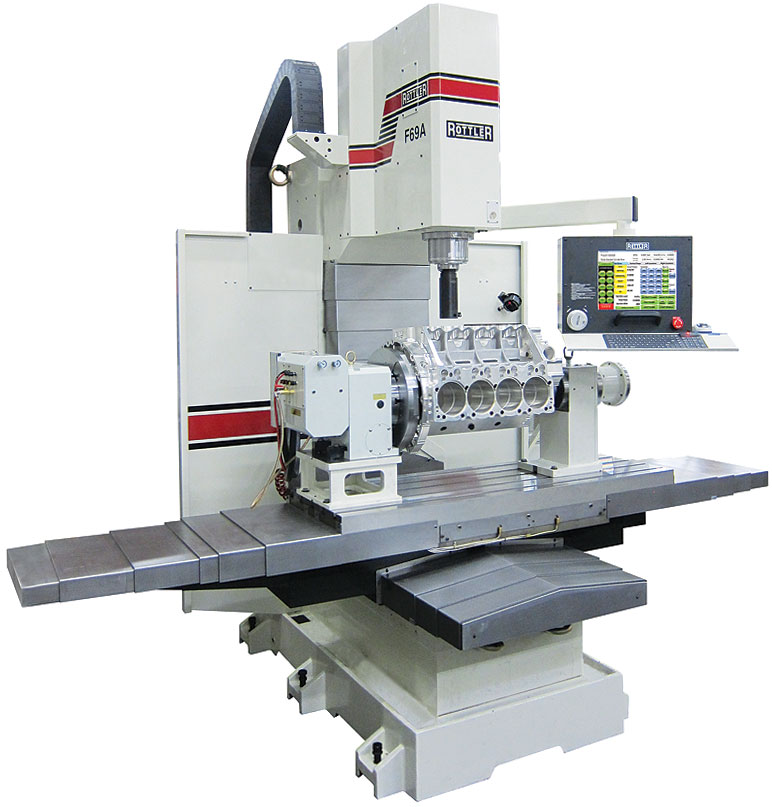

All sleeve installations are executed with CNC machinery , proper fixtures and factory authorized blueprinting procedures.
Machine deck surfaces of block for MLS (Multi Layered Steel) style gasket.Finish bore & diamond hone cylinder bores to precise tolerances.
Final clean, pressure test block and prep for shipment back to customer.
Darton MID sleeves included in price (For most Honda applications)
Performance Automotive ® 475 S Prairie St, Bethalto, IL 62010 (618) - 377-0027.................. Site Designed By AMS Web Designs 1-413-566-0037
COMPLETE PACKAGE INCLUDES:
SLEEVES
CLEAN & INSPECT BLOCK PRIOR TO MACHINE WORK
BLUEPRINT MACHINE BLOCK FOR DARTON MID SLEEVES
INSTALL SLEEVES
MACHINE DECK SURFACE OF BLOCK FOR MLS STYLE GASKET
FINISH BLUEPRINT BORE & POWER HONE CYLINDER BORES TO SIZE
OVER BORE ADD $100
FINAL CLEAN BLOCK, AND PREP FOR SHIPMENT BACK TO CUSTOMER
ALL HARDWARE MUST BE REMOVED PRIOR TO SHIPPING
HARDWARE REMOVAL IS AN ADDITIONAL COST
HONDA / ACURA DARTON MID SLEEVE
D16, B16A, B18A, B18B, B18C1-5..............................................$ CALL
F22C / S2000................................................................................. $ CALL
H22, H23........................................................................................$ CALL
K20, K24 .......................................................................................$ CALL
Darton Sleeve Installation Labor Pricing
Labor Only 4 Cylinder $ CALL - Labor Only V-6 $ CALL
NISSAN DARTON MID SLEEVE
VQ35HR, VQ35DE..................................... ..................................$ CALL
QR25DE..........................................................................................$ CALL
SR20DE Flange Sleeve Not MID...................................................$ CALL
MID™ Kits for FORD™
DURATeC™ ...................................................................................$ CALL
4.6L MODULAR
5.4 MODULAR IRON BLOCK..................................................... $ CALL
5.4 MODULAR ALUMINUM BLOCK
Darton MID™ Kits for GM™
ECOTEC™ ......................................................................................$ CALL
NORTHSTAR™
LS-1/ LS-6
LS-2 MID .......................................................................................$ CALL
Darton Dry Sleeve Kits for GM™
LS-2, LS-2/7 Dry Sleeve Kit ..........................................................$ CALL
Darton MID™ Kits for LEXUS™ and TOYOTA
LEXUS™ - ISF 2UR
TOYOTA™ - TUNDRA™ 3UR
Darton MID™ Kits for VOLVO
S60-R I5 5 cylinder.......................................................................... $ CALL
Darton NISSAN™ SLEEVES
SR20 86MM-90mm Flanged Sleeve............................................. $ CALL
Darton SUBARU™ SLEEVES
EZ30 6 CYL.
EJ20, EJ22, EJ25.............................................................................. $ CALL
EG33 6CYL.
Darton Sleeve Installation Darton Sleeves
